Lower the headlining on the left or right (with SA403 glass roof)
NOTE:
RISK OF DAMAGE Electrostatic discharge. Damage to or destruction of electrical components.
- Leave electrical components in original packaging until just before they are installed. Use the original packaging only for any return shipments. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only touch the housings of electrical components. Do not touch pins or multipin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES for ESD protection (electrostatic discharge)
Preliminary works
- Remove the a-pillar TRIM PANEL .
- Remove the sun visor COUNTER SUPPORT .
- Remove SUN VISOR .
- Remove the front left or right vanity mirror LIGHT .
- Remove the left hands-free MICROPHONE .
- Remove the roof FUNCTION CENTER (FZD).
- Remove the interior mirror COVERS .
- Remove the interior MIRROR .
- Remove rear interior roof LIGHT .
- Remove the upper b-pillar TRIM PANEL .
- Remove c-pillar TRIM PANEL .
- Remove the left or right GRAB HANDLES
NOTE:
RISK OF DAMAGE Careless handling of tools and sharp-edged components. Scratch, surface damage.
- Protect working area.
- Handle tools and components carefully.
Prerequisite
Glass roof is open.

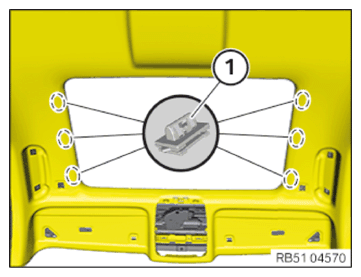

- Loosen screws (1).
- Loosen the frame (1) at the clips (2).
- If necessary, loosen the cable clip from the frame (1).
- Loosen screw (1).
- Unclip panel down (1) from the clips (2) and remove it.

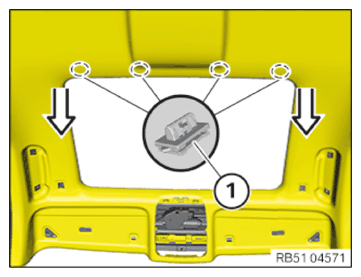

- Loosen the frame (1) at the clips (2).
- Undo headlining from the side clips (1) using special tool 0 496 569 (00 9 325)
.
- Slide headlining towards the front and feed out from the clips (1).
- Guide out the headlining at the respective edge protection.
- Lower the headlining and place it onto the head restraints as shown.
