Remove fuel tank

NOTE: DANGER
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!

All work on the high-voltage system may only be carried out by specially trainee and technically experienced personnel.
For additional information see:
61 00... SAFETY INSTRUCTIONS ON HANDLING HYBRID CARS .
For additional information see:
61 25... NOTES ON REPAIR OF HIGH-VOLTAGE BATTERY UNIT .

Preliminary work

Refer to VENTILATE THE FUEL TANK .
Refer to REMOVE LEFT BACKREST SIDE SECTION .
Refer to REMOVE REAR SEAT BENCH .
Refer to REMOVE REAR SEAT BACKREST .
Refer to REMOVE THE REAR LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to REMOVE LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to REMOVING THE LOADING EDGE TRIM .
Refer to REMOVE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT .
Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
Refer to REMOVING THE REAR RIGHT WHEEL .
Refer to REMOVING REAR WHEEL ARCH COVER .
Refer to SUCTION THE FUEL TANK .
Refer to REMOVING THE HOUSING COVER FOR THE FUEL TANK .
Refer to REMOVING THE FUEL FILLER PIPE WITH COVER HOUSING .

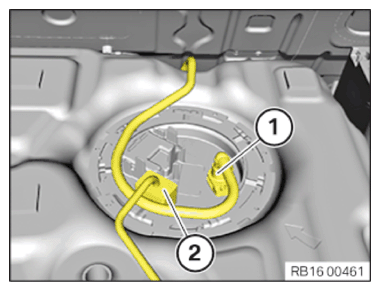

Unlock plug connection (1) and disconnect.
Unlock and disconnect the snap fastener (2).

Courtesy of BMW OF NORTH AMERICA, INC.

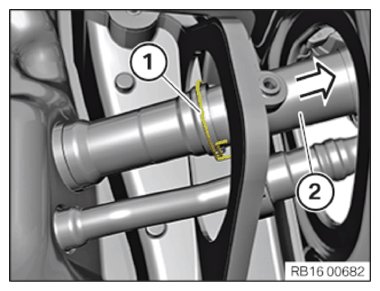

Unlock the retaining clip (1) and remove the nozzle (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.

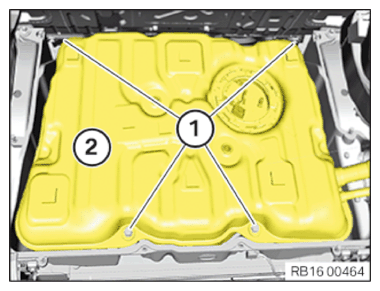

Release the screws (1) and remove the fuel tank (2).

Courtesy of BMW OF NORTH AMERICA, INC.
