Installing the front carpet

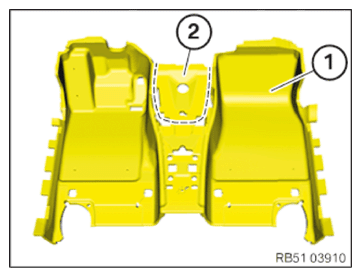

- Place the removed carpet on top of the new carpet (1) and transfer the cuts to the new carpet (1) .
- Cut off the highlighted area (2)
on the new carpet (1)
.

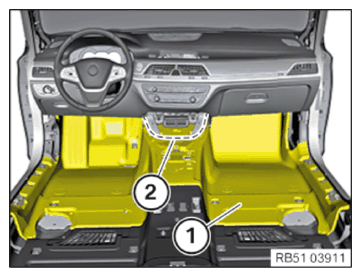

- Insert the carpet (1) in the motor vehicle.
- Make sure the carpet (1) is positioned correctly on all adjacent parts and in the area of the heating and air conditioning unit (2) .
Follow-up Work
- Install right a-pillar footwell side TRIM PANEL .
- Install the left a-pillar footwell side TRIM PANEL .
- Install accelerator PEDAL MODULE .
- Install the lower b-pillar TRIM PANEL .
- Install upper b-pillar TRIM PANEL .
- Install both FRONT SEATS .
- Install both rear inner door sill COVER STRIPS .
- Install both inner front door sill COVER STRIPS .
- Install both the central bass speaker TRIM PIECES .
- Install the CENTER CONSOLE .
- Install the right footwell TRIM PANEL .
- Install the pedal mechanism TRIM PANEL .
- Install the CUP HOLDER .
- Install the center console TRIM .
- Install front storage compartment TRIM .
- Install the center ARMREST .
- Install the center armrest STORAGE COMPARTMENT .
- Install the rear center console TRIM .
- Install rear VENTILATION GRILLE .
- Install the rear VENTILATION GRILLE (air conditioning with 4-zone control).
- Install the rear passenger compartment air conditioning CONTROL PANEL (integrated automatic heating/air conditioning system with 4-zone control).
- Connect all battery EARTH LEADS .
- Activate the 48 v ELECTRICAL SYSTEM .
