Install the seat mechanism for the front seat

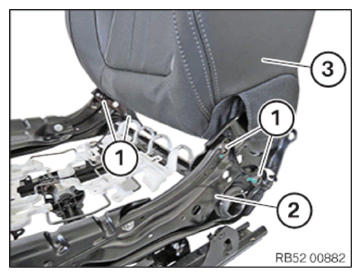

• Position the backrest (3) on the seat mechanism (2).
• Tighten the screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Backrest frame to seat mechanism
  M10	Tightening torque	38 Nm

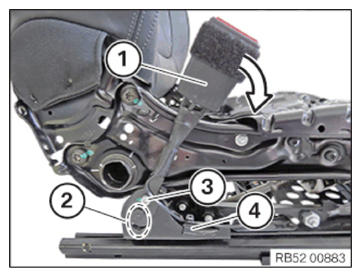

• Insert the lower strap (1) in this area (2) and fold it forwards.
• Tighten down screw (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Lower strap to seat mechanism
  M6	Tightening torque	8 Nm

• Attach the cable clip (4).
• Insert the wiring harness (3).
• Secure the cable clips (1).
• Clip in the connector housing (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

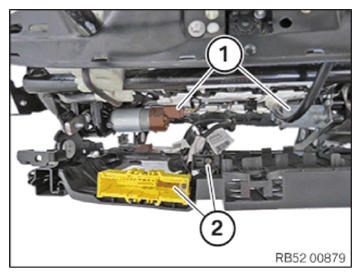

• Connect the connectors for the motors (1).
• Clip in the connector housing (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Fit the front seat cushion seat COVER
• Install the seat outer cover SUPPORT
• Install seat adjustment OPERATING UNIT .
• Install the outer seat rail COVER .
• Install front seat rail COVER
• Install front seat outer COVER .
• Install front seat inner COVER .
• Install front SEAT .
