Install the seat cover for the front seat

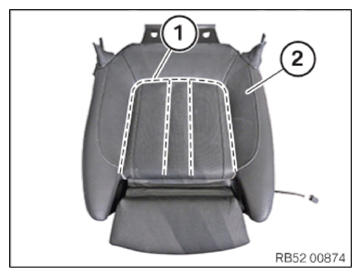

• Place the seat cover (2) on the cushion.
• Secure all trim wires (1) with clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the clamps (2).

  Parts:  Clamps

• Insert the new clamp (2) with the special tool 0 492 668 (52 0050)  .
• Fasten the trim wire (3) of the cushion (1) and the trim wire (4) of the cover using the clamp (2) and bend the clamp (2) to close it.

  Courtesy of BMW OF NORTH AMERICA, INC.

  1	Cushion
  2	Clamp
  3	Trim wire in upholstery
  4	Trim wire in cover
  5	Seat cover

Follow-up Work

• Fit the front seat cushion seat COVER
• Install the front seat outer cover SUPPORT
• Install seat adjustment OPERATING UNIT .
• Install front seat outer COVER .
• Install front seat inner COVER
• Install front SEAT .
