Remove the backrest frame for the right rear seat backrest

Preliminary works

• Remove right side section BACKREST .
• Remove the right rear seat BACKREST .
• Remove the side rear HEAD RESTRAINT .
• Remove the right rear seat backrest rear PANEL .
• Remove the rear head restraint GUIDE SLEEVE

Remove the backrest frame for the rear seat backrest

• Loosen screw (1).
• Remove the outer mount (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

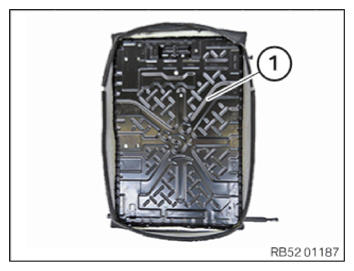

• Feed out and remove the backrest frame (1).

  Courtesy of BMW OF NORTH AMERICA, INC.
