Completely installing the glass slide/tilt sunroof

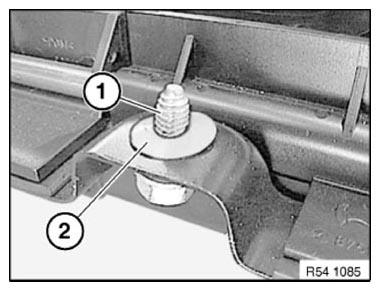

• In order to prevent groaning noises, all bolts (1) must be secured with the plastic washers (2) prior to installation.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the glass slide/tilt sunroof into the vehicle together with a second person.
• Secure the glass slide/tilt sunroof from falling down with the help of a second person.
• Screw in the bolts (1) to (3) a few turns.

  The glass slide/tilt sunroof must still be able to move in the body aperture.

• Make sure the screws are correctly positioned.

  Screws (1)	M6x14
  Screws (2)	M6x26
  Screws (3)	M6x23

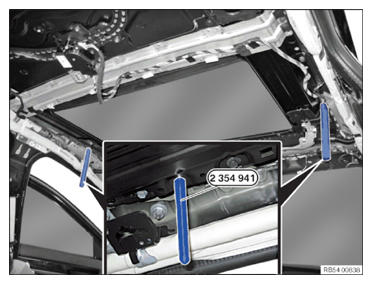

• Insert the special tool 2 354 941  into the centering bores to the limit position in glass slide/tilt sunroof and the body.
• Tighten the screws on the glass slide/tilt sunroof.

Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the wiring harness (2) on all cable clips (arrows).
• Connect connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect all 4 water drain hoses (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install all holders for GRAB HANDLES
• Install HEADLINING (with SA403 glass roof).
• Replace the SPACER .
• Check the instrument panel EXPANDING FOAM TAPE .
• Check windscreen COVER
• Check the cowl panel SOUND INSULATION .
• Install WINDSCREEN .
• Secure front HEADLINING .
• Install all GRAB HANDLES .
• Install both c-pillar TRIM PANELS .
• Partially install top left and right b-pillar TRIM PANELS
• Install rear interior roof LIGHT .
• Connect rain-light-solar-condensation sensor CONNECTOR
• Install the KAFAS CAMERA with the integrated control unit.
• Install the interior MIRROR .
• Install the interior mirror COVERS .
• Install roof FUNCTION CENTER (FZD).
• Install the left and right SUN VISORS
• Install both vanity mirror LIGHTS .
• Install the left and right sun visor COUNTER SUPPORTS .
• Install the right hands-free MICROPHONE .
• Install left hands-free MICROPHONE .
• Install the left and right a-pillar TRIM PANEL .
• Install the left and right roof TRIM STRIP .
• Install panel cover COWL .
• Install left and right WIPER ARM .
• Install the rear right engine compartment COVER .
• Install the engine compartment on the rear left COVER .
• Calibrate KAFAS CAMERA .
