Installing front brake caliper (high brake)

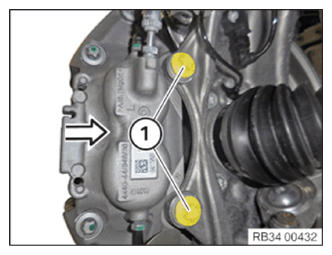

• Install the brake caliper in the arrow direction.
• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Brake caliper/brake anchor plate at front swivel bearing
  M12 Replace screw.	Tightening torque	110 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fit and tighten brake hose (1) on brake caliper.

  If necessary, grip at knurling (2).

  TIGHTENING TORQUES SPECIFICATION



  Brake hose to brake caliper, front
  	Tightening torque	17 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Make sure the brake hose is not  twisted and resting on components attached to the body.
• If necessary, hook the brake hose in the holder (3).

Follow-up work

• Remove the brake pedal TENSIONER .
• Grease BRAKE PADS , brake anchor plate and brake caliper with brake pad paste (brake high).
• Install FRONT PADS  (high brake).
• Install the front brake pad WEAR SENSOR .
• Install front left or right WHEEL .
• Connect the brake fluid BLEEDER UNIT .
• FLUSH AND BLEED  the front axle brake circuit (brake high).
• Disconnect the brake fluid BLEEDER UNIT .
• COMMISSION OR BEDD IN new brake pads and discs (high brake).
