Installing the tandem brake master cylinder

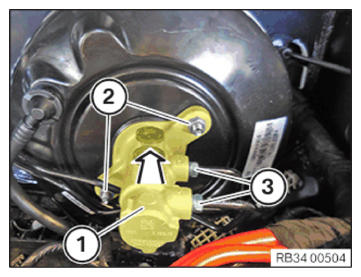

• Install tandem brake master cylinder (1)  in the brake booster in the arrow direction.
• Replace nuts (2)  .

  Parts:  Nuts

• Place and tighten nuts (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Tandem brake master cylinder in the brake booster
  M8 Replace nuts.	Tightening torque	27 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• (3)  Fit brake lines and tighten.

Follow-up work

• Install the EXPANSION TANK .
• Install tension strut on SHOCK TOWER .
• Install windshield panel COVER .
• Install left and right WIPER ARM .
• Install the rear right engine compartment COVER .
• Connect the brake fluid BLEEDER UNIT .
• FLUSH AND VENT  the rear axle brake circuit.
• FLUSH AND BLEED  the front axle brake circuit (brake high).
• Disconnect the brake fluid BLEEDER UNIT .
