Installing rear brake hose

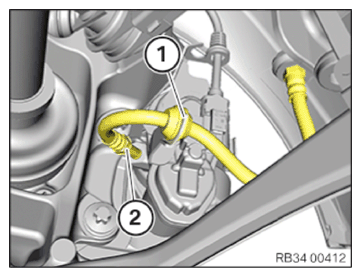

• Attach the brake hose to the holder (1).
• Fit and tighten brake hose (2) on brake caliper.

  Never twist brake hose and avoid all contact with components attached rigidly to the body.

  TIGHTENING TORQUES SPECIFICATION



  Brake hose to brake caliper, rear
  	Tightening torque	24 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

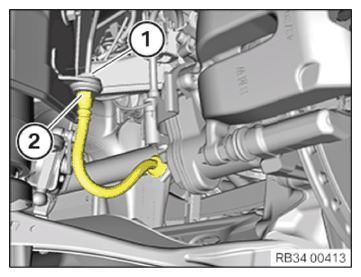

• Attach and tighten union screw (1).

  Hold on to square shaft, if necessary (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install rear left or right WHEEL .
• Remove the brake pedal TENSIONER .
• Connect the brake fluid BLEEDER UNIT .
• FLUSH AND VENT  the rear axle brake circuit.
• Disconnect the brake fluid BLEEDER UNIT .
