Install brake booster

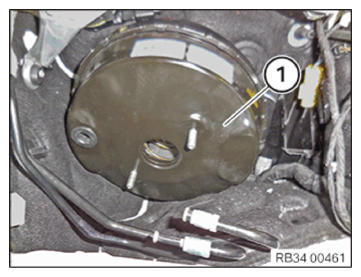

• Screw in the brake booster (1) in the firewall.

  Courtesy of BMW OF NORTH AMERICA, INC.

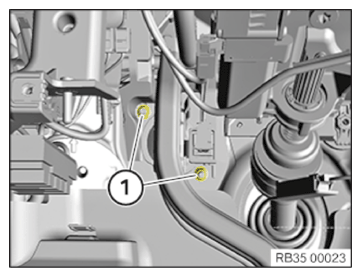

• Install the nuts (1) and tighten.
• Replace nuts.

  Parts:  Nuts

  TIGHTENING TORQUES SPECIFICATION



  Brake booster to pedal assembly console
  M8 Replace nuts. Retighten 1x on brake booster after 10 min.	Tightening torque	22 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

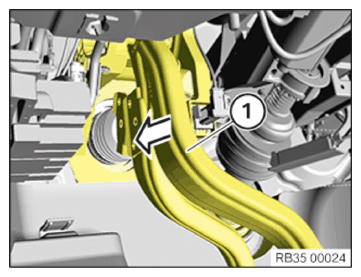

• Lock the brake pedal (1) in arrow direction with the brake booster.

  Ensure that the brake pedal is completely locked with the brake booster!

  Courtesy of BMW OF NORTH AMERICA, INC.

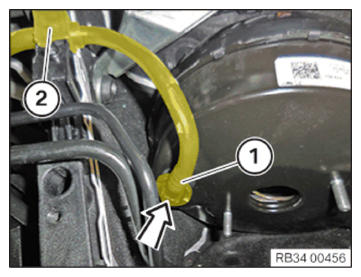

• Install return check valve (1) in arrow direction into brake booster.
• Attach vacuum line in the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

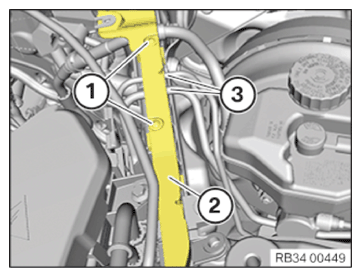

• Attach brake lines (3) in the guides.
• Install the cover (2).
• Insert screws (1) and tighten them.

  Courtesy of BMW OF NORTH AMERICA, INC.

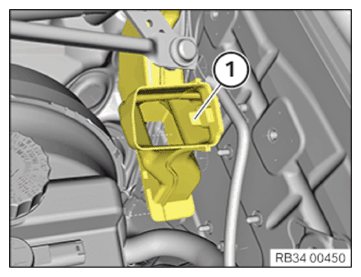

• Install air duct (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install brake LIGHT SWITCH .
• Prepare for the installation of the tandem brake MASTER CYLINDER .
• Install the tandem brake MASTER CYLINDER .
• Install the EXPANSION TANK .
• Install the pedal assembly trim PANEL .
• Install the WIPER CONSOLE .
• Install shock tower TENSION STRUT .
• Install windshield panel COVER .
• Install left and right WIPER ARM .
• Install the rear right engine compartment COVER .
• Connect the brake fluid BLEEDER UNIT .
• FLUSH AND VENT  the rear axle brake circuit.
• FLUSH AND BLEED  the front axle brake circuit (brake high).
• Disconnect the brake fluid BLEEDER UNIT .
