Remove Left Engine Compartment Lid Hinge

Prerequisite

• Vehicle does not have active pedestrian protection.

Preliminary work

• Refer to REMOVING THE NOZZLE CHAIN .
• refer to REMOVE BONNET .
• Refer to REMOVING THE GAS PRESSURE SPRING FOR ENGINE COMPARTMENT LID .
• Refer to REMOVE THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT
• Refer to REMOVE THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
• Refer to REMOVE LEFT AND RIGHT WIPER ARM .
• Refer to REMOVE COWL PANEL COVER .

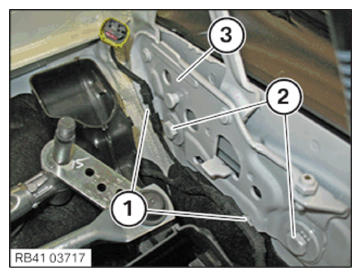

• Unclip the cable clip (1).
• Loosen screws (2).
• Remove the engine compartment lid hinge (3).

  Courtesy of BMW OF NORTH AMERICA, INC.
