Install The Fuel Filler Pipe

• Position the fuel filler pipe in the correct installation position.
• Replace nuts (1).

  Parts:  Nuts

• Install the nuts (1) and tighten.
  TIGHTENING TORQUES SPECIFICATION



  Fuel filler pipe on upper body
  Nut M6 Renew nut.	tightening torque
  	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

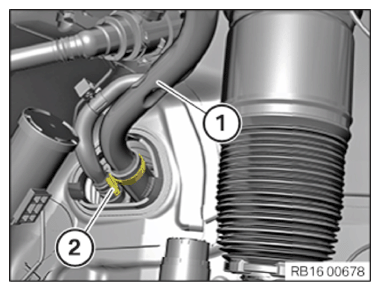

• Position the fuel filler pipe (1) in the correct installation position.
• Renew the hose clamp (2).

  Parts:  Hose clamp

• Position hose clamp (2) and tighten.
  TIGHTENING TORQUES SPECIFICATION



  Filling hose on fuel tank
  Hose clamp Replace hose clamp.	tightening torque
  	4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position vapor recovery shut-off valve.
• Renew screws (1).

  Parts:  screw

• Insert screws (1) and tighten them.
  TIGHTENING TORQUES SPECIFICATION



  Vapor recovery shut-off valve on body
  M6 Renew screws.	tightening torque
  	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position snap fastener (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to REMOVING THE REAR WHEEL ARCH COVER .
• Refer to MOUNTING THE REAR RIGHT WHEEL .
• Refer to INSTALL THE FUEL FILLER FLAP .
• Refer to FILL FUEL TANK .
