Lifting down rear axle differential from special tool
WARNING:
Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Secure the vehicle hoist against lowering and lifting.
Preliminary work
- Remove the left and right camber control arm COVER .
- Remove EXHAUST SYSTEM
- Remove the rear HEAT SHIELD .
- Release the rear axle differential PROP SHAFT .
- Release the rear axle differential right and left OUTPUT SHAFTS .
- Remove rear axle DIFFERENTIAL .
NOTE:
RISK OF DAMAGE
Damage to rear axle differential.
Failure to comply with the oil specifications can result in serious damage to the rear axle differential.
Damage to rear axle differential.
Failure to comply with the oil specifications can result in serious damage to the rear axle differential.
- After completion of repair work, check the transmission oil level in the rear axle differential.
- Use only the APPROVED FINAL DRIVE transmission differential fluid..
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

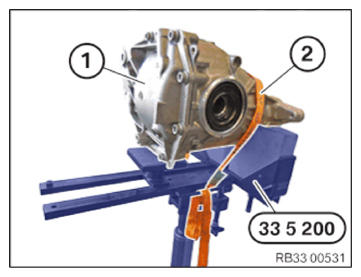

- Loosening the luggage strap (2).
- Lift the rear axle differential (1) down from the special tool 0 496 009 (33 5 200) .
If necessary, ask for support by a second person.
