Removing the rubber mount on the front rear axle differential
WARNING:
Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Secure the vehicle hoist against lowering and lifting.
Preliminary work
- Remove the left and right camber control arm COVER .
- Remove EXHAUST SYSTEM
- Remove the rear HEAT SHIELD .
- Lower rear AXLE DIFFERENTIAL
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... Raise the vehicle using a VEHICLE LIFT .

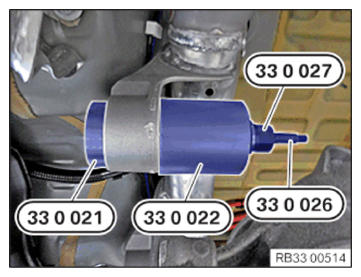

- Pull out and remove the rubber mount with special tools 0 496 500 (33 0 021), 0 496 501 (33 0 022), 0 496 505 (33 0 026) and 0 496 506 (33 0 027) .
