Install top wishbone

• Position the upper wishbone (1).
• Replace screw (3) and nut (4).

  Parts:  Bolt, nut

• Insert screw (3).
• Tighten nut (4).
  TIGHTENING TORQUES SPECIFICATION



  Upper wishbone to wheel carrier
  M14 Replace screw and nut.	Jointing torque	165 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the cable clip (2) to the wishbone.
  NOTE: TECHNICAL INFORMATION
  The vehicle ride height may change as a result of turning the eccentric bolts for the adjustment of toe and camber. When replacing the bolts, make sure the eccentric bolts are correctly positioned to keep the ride height change to a minimum during the adjustment work.

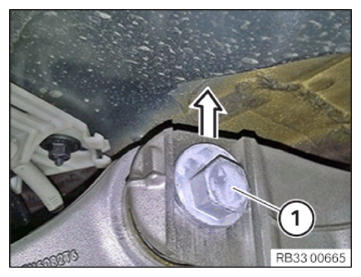

• During replaceal, position eccentric bolt (1) such that the eccentric points vertically upwards.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Tighten the screw connection in the normal position.
  For additional information see: 33 00 Overview of TECHNICAL DATA

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the bolt (2), the nut (1) and the eccentric washer.

  Parts:  Bolt, nut, eccentric washer

• Insert screw (2).
• Connect eccentric washer.
• Tighten the nut (1) in NORMAL POSITION .
  TIGHTENING TORQUES SPECIFICATION



  Upper wishbone to rear axle carrier
  M14 Replace bolt, nut and eccentric washer. Tighten in normal position.	Tightening torque	175 Nm

Follow-up Work

• Mount the WHEEL .
• Perform chassis ALIGNMENT CHECK .
• Install the camber control arm COVER .
