Install the central mount of the prop shaft

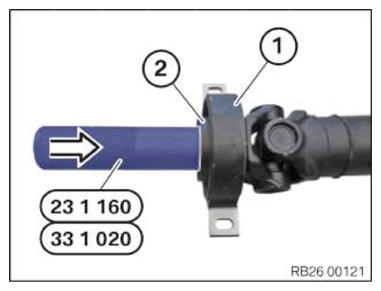

Slide the central mount (1) onto the prop shaft.
The collar (2) must point in the driving direction toward the front prop shaft.
Central mount diameter 30 mm (black sealing ring):
Slide on the central mount (1) all the way to the stop using special tool 0 491 491 (23 1 160) .
Central mount diameter 35 mm (blue sealing ring):
Slide on the central mount (1) all the way to the stop using special tool 0 492 074 (33 1 020) .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the boot of the center bearing
Apply an even coating of grease to longitudinal splines on propeller shaft.

Push boot (1) onto the groove (2) and make sure it fits firmly.

CONSUMABLE - LUBRICATING GREASE DESCRIPTION

Lubricating grease Olistamoly 2 LN 584 LO

100 g, Tube

83 19 0 447 919

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, insert a new clamping ring (1) into the front propeller shaft (2).
Parts: Clamping ring

Courtesy of BMW OF NORTH AMERICA, INC.
Push the front propeller shaft (3) according to the marking you have made onto the longitudinal splines of the rear propeller shaft (4).
The marks must be aligned (arrows).
Push boot (1) onto the groove (2) and make sure it fits firmly.

Courtesy of BMW OF NORTH AMERICA, INC.
Push the juncture shaft together in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
