Removing the power distribution box of the positive battery cable at the front

Preliminary works

• Deactivate the 48 v ELECTRICAL SYSTEM .
• Disconnect all battery EARTH LEADS .
• Remove the rear right engine compartment COVER .
• Remove the rear left engine compartment COVER
• Remove left and right WIPER ARM .
• Remove cowl panel COVER .
• Remove the upper part center FIREWALL .
• Remove the spring strut dome right TENSION STRUT .

• Loosen screws (1).
• Loosen the latch mechanism (2).
• Remove the sealing frame of power distribution box (3) towards the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the cover (1) at the latch mechanism (2).
• Remove the cover (1) in an upwards direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Undo the nut (1) and feed out the corresponding cable.
• Undo the nuts (2) and feed out the corresponding cables.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen the cable clip (arrow).
• Loosen screws (1).
• Loosen screw (2).
• Feed out the power distribution box (3) in an upwards direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

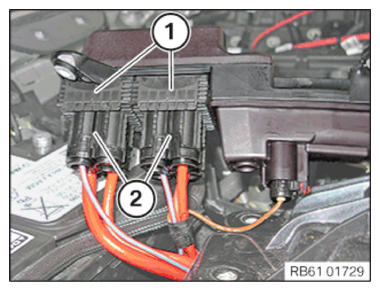

• Lever out the locks (1) at the connectors (2).
• Pull off connectors (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
