Installing the front power distribution box

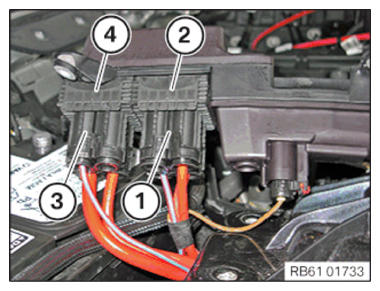

- First connect connector (1) and close the lock (2).
- First connect connector (3) and close the lock (4).

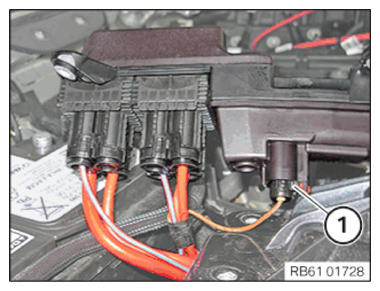

- Connect connectors (1) and lock.

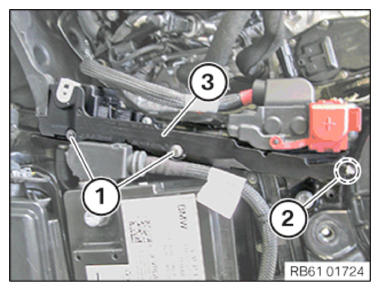

- Feed in the power distribution box (3) in a downwards direction.
- Tighten down screw (2).TIGHTENING TORQUES SPECIFICATION
Front fuse and relay module Screw TS4x16 Tightening torque 2.6 Nm - Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Front fuse and relay module M8x35 screw Tightening torque 28 Nm - Mount the cable clips (arrow).

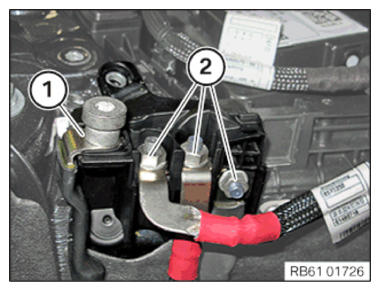

- Insert the corresponding cable and tighten the nuts (1).TIGHTENING TORQUES SPECIFICATION
Positive battery connection point Flange Nut M8 Tightening torque 19 Nm - Insert the corresponding cable and tighten the nuts (2).TIGHTENING TORQUES SPECIFICATION

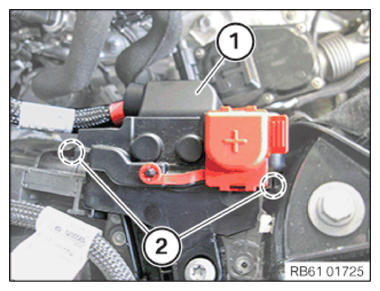

Positive battery cable Positive pole screw Tightening torque 15 Nm - Feed in the cover (1) in a downwards direction.
- Check the latch mechanisms (2) are seated correctly.

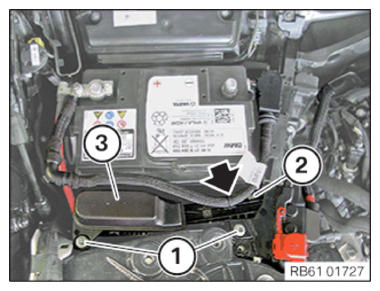

- Feed in the power distribution box sealing frame (3) in a downwards direction.
- Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Front power distribution box sealing frame Bolt RF5x25 Tightening torque 2.5 Nm - Check the latch mechanism (2) is fitted correctly.
Follow-up Work
- Install the right spring strut dome TENSION STRUT .
- Install the upper part center FIREWALL .
- Install cowl panel COVER .
- Install left and right WIPER ARM .
- Install the rear left engine compartment COVER .
- Install the rear right engine compartment COVER .
- Reconnect all battery EARTH LEADS
- Activate the 48 v ELECTRICAL SYSTEM .
