Replace the alternator regulator

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
• Refer to REMOVING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
• Refer to REMOVING RIGHT INTAKE FILTER HOUSING WITH RIGHT FRONT-END STRUT .
• Refer to REMOVING FRONT CROSS CONNECTION .
• Refer to REMOVING THE REAR TOP CROSS CONNECTION .
• Refer to REMOVING FAN COWL .
• Refer to PARTIALLY RELEASE THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to REMOVING DRIVE BELT .
• Refer to REMOVING THE FRONT RIGHT LOWER WHEEL ARCH COVER .
• Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
• Refer to DRAINING COOLANT .
• Refer to PARTIALLY RELEASING THE RIGHT CHARGE AIR LINE .
• Refer to RELEASING LEFT CHARGE AIR LINE PARTIALLY .
• Refer to PARTIALLY REMOVING THE CHARGE AIR COOLER .
• Refer to REMOVING THE CLEAN AIR PIPE OF CYLINDER BANK 1 .
• Refer to REMOVING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
• Refer to DISCONNECTING THE COOLANT LINES OF THE EXHAUST TURBOCHARGER .
• Refer to REMOVING THE ALTERNATOR .

• Loosen nuts (1).
• Pull the cover (3) up over the stud (2) and off.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unscrew the thread connections (1).
• Pull the alternator speed governor (2) up and off.

  Courtesy of BMW OF NORTH AMERICA, INC.

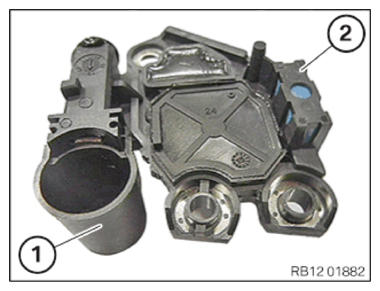

• Only release the transportation retainer (1) on the alternator speed governor (2) after installation.

The alternator speed governor (2) can only be installed once.

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the alternator speed governor (2).
• Tighten the thread connections (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Make sure the alternator speed governor (2) is sitting on the alternator properly.
• Press the transportation retainer (3) down and release.
• The transportation retainer (3) should audibly click.
• Insert the cover (3) down over the stud (2).
• Tighten nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL ALTERNATOR .
• Refer to CONNECTING THE COOLANT LINES OF THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING CLEAN AIR PIPE OF CYLINDER BANK 1 .
• Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
• Refer to ATTACHING THE CHARGE AIR COOLER .
• Refer to CONNECTING THE LEFT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
• Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
• Refer to CLOSING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING DRIVE BELT .
• Refer to PARTIALLY FASTENING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING WITH THE RIGHT FRONT-END STRUT .
• Refer to INSTALLING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
• Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to WHEN REPLACING THE ALTERNATOR/ALTERNATOR REGULATOR: RESET GENERATOR STATISTICAL DATA .
