Installing wiring harness section for sensor system 1

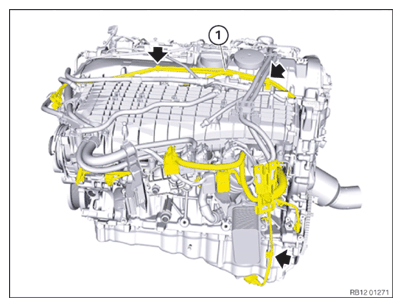

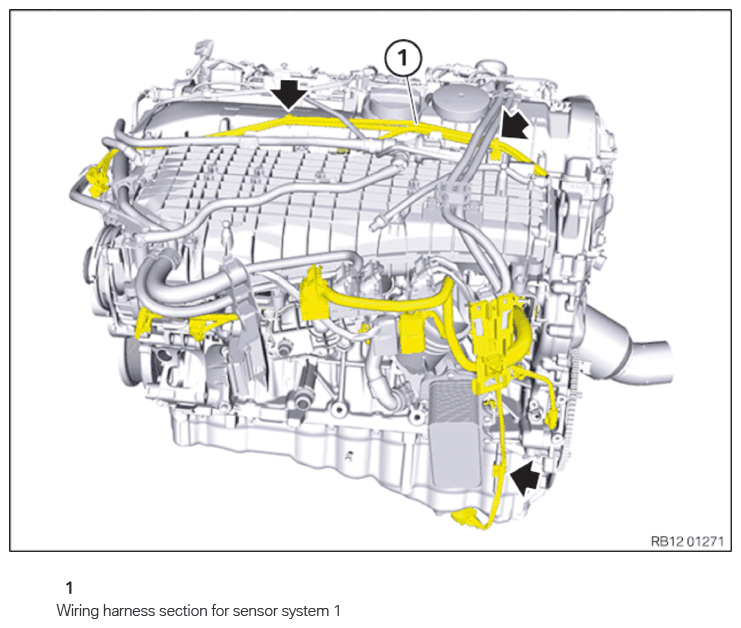

Wiring harness section for sensor system 1

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

Feed in and install the wiring harness section for sensor system 1 (1).
Connect and lock the connector of the boost pressure sensor.
Connect and lock the connector for the charge-air temperature sensor.
Connect and lock the connector for the crankshaft sensor.
Connect and lock the connector for the oil pressure switch.
Connect and lock the connector for the solenoid valve.
Connect and lock the connector for the heat management module.
Connect and lock the connector for the oil-level sensor.
Connect and lock the connectors for the knock sensors.
Connect and lock the connector for the coolant temperature sensor.
Connect and lock the connector of the electric coolant pump.
Connect and lock the connector for the alternator.
Connect and lock the connector for the air conditioning compressor.
Connect and lock the connector of the integrated power supply module (PDM).
Connect and lock the connector of the DME control unit.
The connectors must engage audibly.
Slide the cover (1) in the direction of the arrow into the guide (2) and install it.
Lock clamp (3).
The clamp (3) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.
