Removing the engine wiring harness for sensor system 2
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
Preliminary work
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COWL COVER .
- Refer to REMOVING TRAILING LINK AT SPRING BOLT .
- Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
- Refer to REMOVING THE CENTER BULKHEAD LOWER PART .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING ACOUSTIC COVER AT REAR .
- Refer to REMOVING THE DME CONTROL UNIT .
- Refer to REMOVING THE INTEGRATED SUPPLY MODULE (PDM) PARTIALLY .
- Refer to REMOVING THE CONTROL UNIT HOLDER .
- Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
- Refer to REMOVING BOTH FRONT-END STRUTS .
- Refer to REMOVING FRONT CROSS CONNECTION .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE FAN COWL .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING THE INTAKE FILTER HOUSING (TENSION STRUT ON SHOCK TOWER REMOVED) .
- Refer to REMOVING RESONATOR .
- Refer to REMOVING BOTTOM CLEAN AIR PIPE .
- Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING TANK VENT VALVE .
- Refer to REMOVING THE INTAKE PLENUM .
Engine wiring harness for sensor system 2
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
- Do not pull on wires when disconnecting connectors and plug connections.
- Unlock and disconnect the plug connection (1) from the electric coolant pump (2).
- Loosen clamp (3).
- Feed out the engine wiring harness (4) for the sensor system 2 and set it aside.
- Unlock plug connection (1) and disconnect.
- Loosen nut (2).
- Pull out and remove the retainer (3).
- Feed out auxiliary coolant pump (4) and set aside.
- Unlock and disconnect plug connections (1).
- Unlock plug connection (2) and disconnect.
- Loosen nut (3).
- Release the clamps (arrows).
- Unlock the locks (4).
- Feed out the engine wring harness (5) for the sensor system 2 and set it aside.

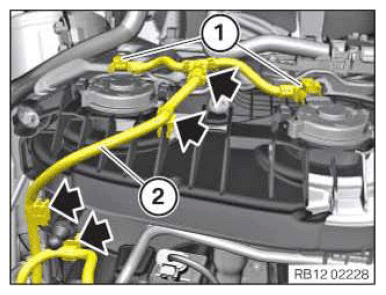

- Version A:
Unlock and disconnect plug connections (1).
Release the clamps (arrows).
Feed out the engine wiring harness (2) for the sensor system 2 and set it aside.
Unlock and disconnect plug connections (1).
Release the clamps (arrows).
Feed out the engine wiring harness (2) for the sensor system 2 and set It aside.
- Unlock and disconnect plug connections (1).
- Unlock the connector (2) and disconnect the engine wiring harness (6) for the sensor system 2.
- Unlock plug connection (3) and disconnect.
- Loosen screw (4).
- Remove the differential pressure sensor (5) and put it to one side.
- Unlock the locks (arrows).
- Feed out the engine wiring harness (6) for the sensor system 2 and set it aside.

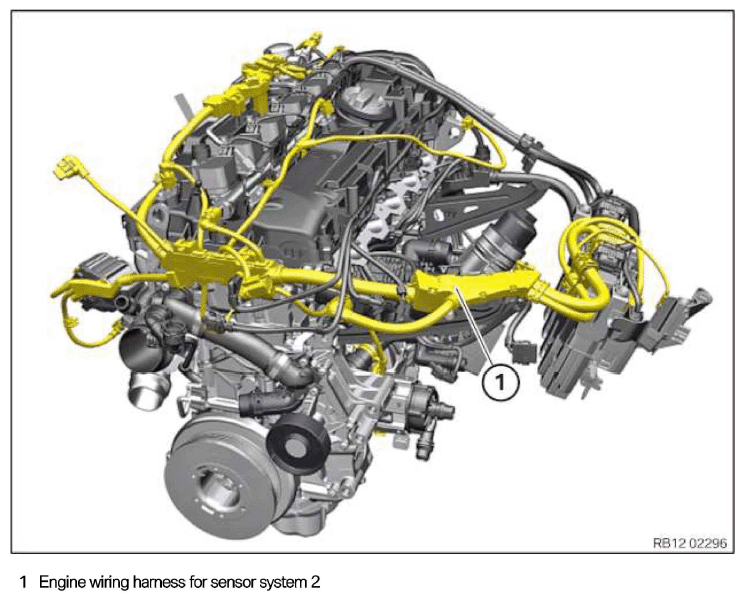

- Feed out and remove the engine wiring harness (1) for the sensor system 2.
