Installing the high-voltage cable

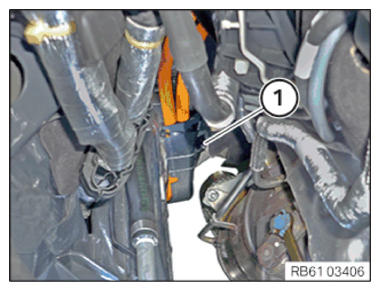

• Feed in the high-voltage cable (2) from the bottom.
• Position the high-voltage cable (2) in the holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the rubber grommets (4) of the high-voltage cable (3).
• Fasten the holder (2).
• Tighten nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Underbody planking on body
  Plastic nut	Tightening torque	2.6 Nm

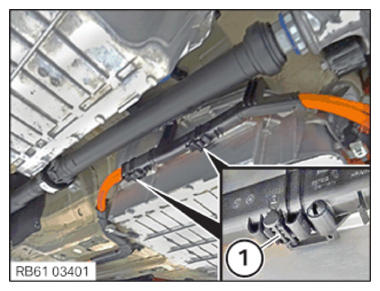

• Position the cable clip below and tighten the nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Underbody planking on body
  Plastic nut	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

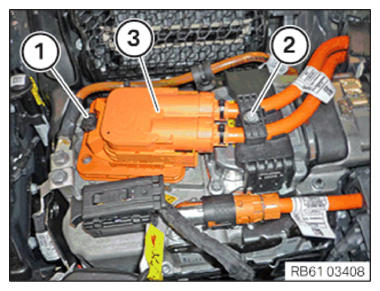

• Insert the connector (3) of the high-voltage cable straight and tighten the screws (2).
  TIGHTENING TORQUES SPECIFICATION



  High-voltage cable to electrical machine electronics
  M6x25 Tighten screws in crosswise sequence.	Joining torque	3 Nm
  	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nuts (1).
  TIGHTENING TORQUES SPECIFICATION



  Holder for tension relief
  M6	Tightening torque	8 Nm

• Position the holder (1) and lock it in the marked area.
• Feed in the rubber grommets (3) of the high-voltage cable.
• Connect connectors (2) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (3) and lock.
• Connect connectors (1) and lock.
• Position the holder and tighten the screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Holder for tension relief
  M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the sealing frame (2).
• Tighten the screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the line clip (2).
• Tighten nuts (1).
  TIGHTENING TORQUES SPECIFICATION



  Underbody planking on body
  Plastic nut	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

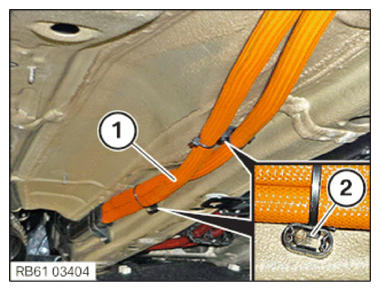

• Clip in the line clip (2) of the high-voltage cable (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the cable clip (2).
• Tighten nuts (1).
  TIGHTENING TORQUES SPECIFICATION



  Underbody planking on body
  Plastic nut	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

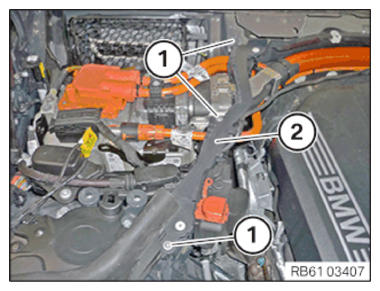

• First feed in the line clip (2) with the two holders (1) to the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lock both the locks (1) by turning upwards.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (3) and lock.
• Connect connectors (2) and lock.

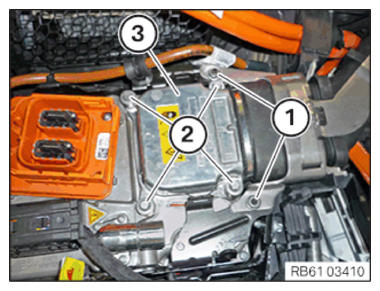

• Position the holder and tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Holder for tension relief
  M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Fit the undercarriage HEAT INSULATION .
• Install the complete EXHAUST SYSTEM
• If installed: install the right, and on the left TORSION STRUT .
• Install the tunnel connect SUPPORTS
• Reconnect all battery GROUND LEADS .
