61 31 116 Replacing the rocker switch for side window operation (rear left or right) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Installing the rear power window switch
Installing the rear power window switch

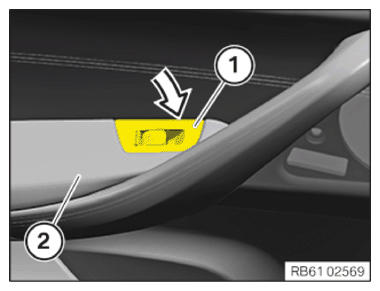

Insert the power window switch (1) in direction of arrow into the door trim panel (2) and engage.
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up Work
Install rear door
TRIM PANEL
.
Attach the door handle
COVER
.
