Install both sport leather steering wheel switches

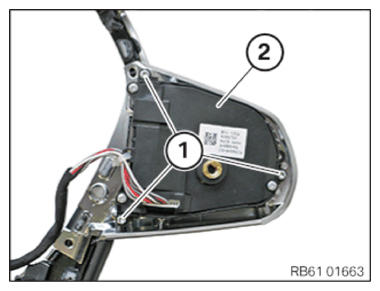

- Position the switch (2) into design trim and tighten with screws (1).TIGHTENING TORQUES SPECIFICATION
MFL switch Screw TS5x12 Tightening torque 1.5 Nm - Repeat operation on the right-hand side.
Follow-up Work
- Install the leather sports steering wheel DECORATIVE TRIM (SA255).
- Install the M leather steering wheel the DECORATIVE TRIM (SA710).
- If installed: install the automatic transmission SHIFT PADDLE
- Install the steering wheel or sports steering wheel AIRBAG UNIT .
- Install the M sports steering wheel AIRBAG UNIT .
- Connect all battery EARTH LEADS .
- Activate the 48 v ELECTRICAL SYSTEM .
