Remove wiper console

Preliminary works

• Remove the rear left engine compartment COVER
• Remove the rear right engine compartment COVER .
• Remove left and right WIPER ARM .
• Remove cowl panel COVER .
• Remove spring strut dome TRAILING LINK .

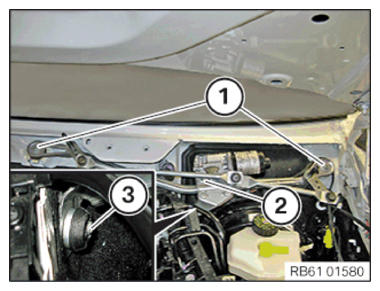

• Loosen nuts (1).
• Remove the wiper console (2) from the guide (3).
• Unlock and disconnect associated connector.

  Courtesy of BMW OF NORTH AMERICA, INC.
