Insert the exhaust turbocharger for the cylinders 5 to 8
NOTE:
TECHNICAL INFORMATION
The seal and V-ribbon clip must be replaced.
The seal and V-ribbon clip must be replaced.

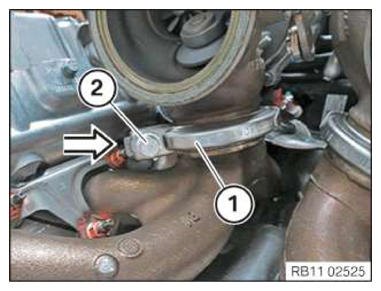

- Replace gasket and V band clamp (1).
Parts : Seal, V-ribbon clip
- Position V-ribbon clip (1).
- Tighten V-band clamp (2).
TIGHTENING TORQUES SPECIFICATION
| Exhaust turbocharger to exhaust manifold | ||
|---|---|---|
| V-ribbon clip Replace V-ribbon clip. |
tightening torque | 13 Nm |
Follow-up work
- Refer to SECURING THE OIL RETURN LINE AT THE OIL RETURN COVER OF THE CYLINDERS 5 TO 8 .
- Refer to FASTENING THE OIL RETURN LINE ON THE OIL RETURN LID OF CYLINDERS 1 TO 4 .
- Refer to SECURING THE BANJO BOLT FOR THE COOLANT FEED LINE ON THE EXHAUST TURBOCHARGER FOR CYLINDERS 5 TO 8 .
- Refer to SECURING THE COOLANT FEED LINE ON THE EXHAUST TURBOCHARGER OF CYLINDERS 5 TO 8 .
- Refer to SECURING OIL FEED LINE ON EXHAUST TURBOCHARGER OF CYLINDERS 5 TO 8 .
- Refer to SECURING OIL FEED LINE ON EXHAUST TURBOCHARGER OF CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
- Refer to HEAT PROTECTION OF THE LEFT-HAND CATALYTIC CONVERTER PIPE .
- Refer to HEAT PROTECTION OF THE RIGHT-HAND CATALYTIC CONVERTER PIPE .
- Refer to INSTALLING UPPER HEAT SHIELD .
- Refer to IF INSTALLED: INSTALL THE TORSION STRUT ON THE RIGHT, AND ON THE LEFT WHERE REQUIRED .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALLING LEFT CLEAN AIR PIPE .
- Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING ENGINE VENTILATION LINE .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING FAN COWL .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
