Install the radiator of the low-temperature coolant circuit

Further information is available.

NOTE: TECHNICAL INFORMATION
Notes on work at the cooling system form the basis of these repair instructions and must be complied with at all times.
For additional information see: 17 00... INSTRUCTIONS FOR REPAIR WORK ON COOLING SYSTEM

NOTE: TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.

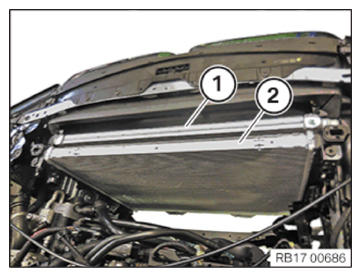

Guide in radiator of low-temperature coolant circuit (1) with radiator of high-temperature coolant circuit (2) and install.

Courtesy of BMW OF NORTH AMERICA, INC.

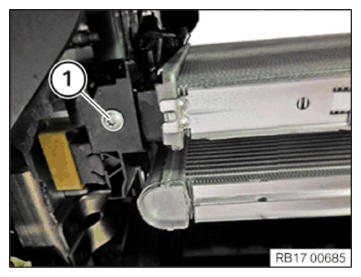

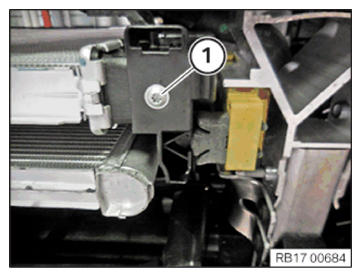

Tighten screw (1) bottom cooling module, left.

TIGHTENING TORQUES SPECIFICATION

Radiator to cooling module, bottom
TS6x20	Tightening torque	6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) bottom cooling module, right.

TIGHTENING TORQUES SPECIFICATION

Radiator to cooling module, bottom
TS6x20	Tightening torque	6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

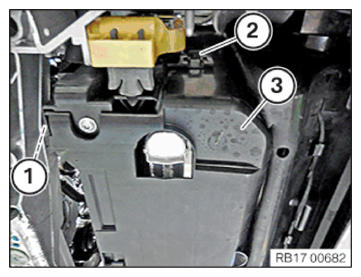

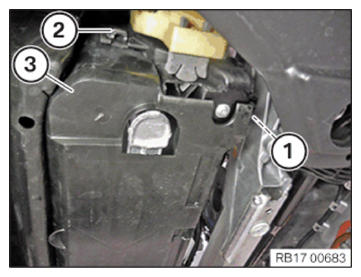

Feed in and install the cover (3) on the bottom left hand cooling module.
Ensure that the lock (2) engages audibly.
Ensure that the lock (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

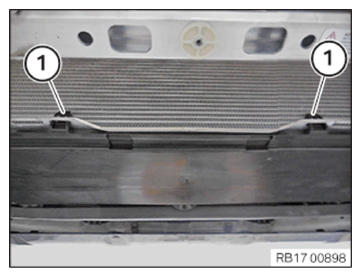

Ensure that the locking mechanisms (1) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the cover (3) on the bottom right hand cooling module.
Ensure that the locking mechanism (2) engages audibly.
Ensure that the lock (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

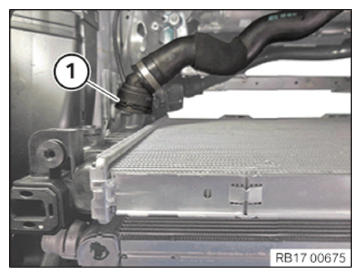

Connect and lock coolant line (1).
Make sure that the coolant line (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

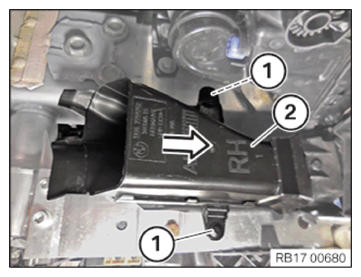

Feed in air duct (2) in direction of arrow and install.
Secure clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

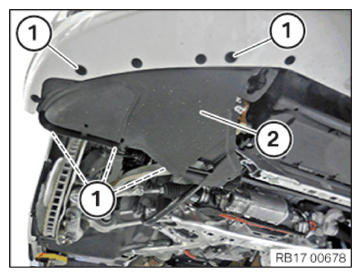

Guide in and install cover (2), front right.
Secure the clamps.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Cover to front bumper
screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

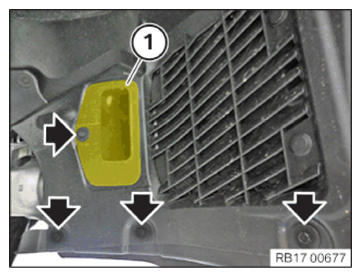

Thread in air duct (1) and install.

Tighten the screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Cover to front bumper
screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

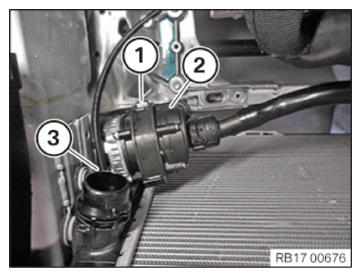

Feed in and install the electric coolant pump (2).
Secure the holder (1).
Secure clamps (3).

Courtesy of BMW OF NORTH AMERICA, INC.

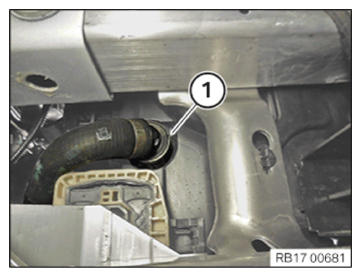

Connect and lock coolant line (1).
Make sure that the coolant line (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

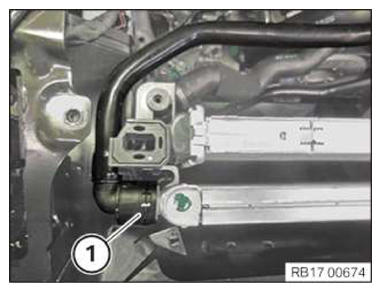

Connect and lock coolant line (1).
Make sure that the cooling line (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

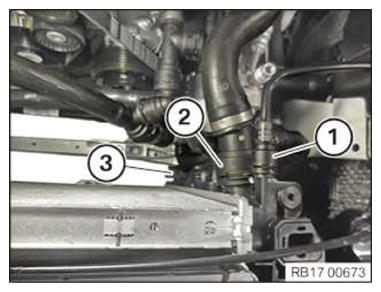

If fitted:
Connect and lock coolant line (3).
Connect and lock coolant line (2).
If fitted:
Connect and lock coolant line (1).
Make sure that all coolant lines engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

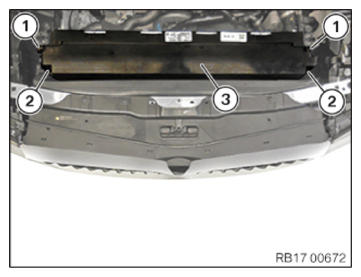

Feed in and install the cover (3) in the cooling module above.
Ensure that the locks (2) engage audibly.
Ensure that the locks (1) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALL FAN COWL .
Refer to INSTALL THE REAR TOP CROSS CONNECTION .
Refer to INSTALL FRONT CROSS CONNECTION .
Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
Refer to FILL AND VENT THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to FILL AND VENT THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
