Install the coolant expansion tank for the low-temperature coolant circuit

Further information is available.

NOTE: TECHNICAL INFORMATION
Follow notes for repair work on the cooling system.

For additional information see:
17 00... INSTRUCTIONS FOR REPAIR WORK ON COOLING SYSTEM

NOTE: TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.

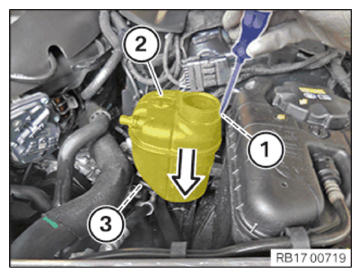

Connect and lock coolant line (3).
The coolant line (3) must audibly engage.
Feed in and install the coolant expansion tank (2) in the direction of the arrow.
The lock (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

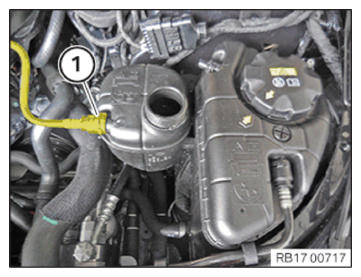

Connect and lock coolant line (1).
The coolant line (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

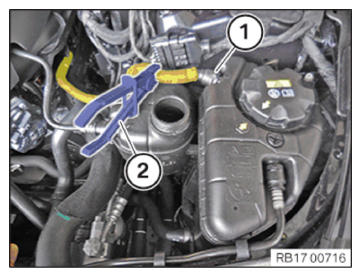

Connect and lock coolant line (1).
The coolant line (1) must audibly engage.
Feed out clamping pliers (2) and remove.
Top up the coolant up to the maximum mark.

Courtesy of BMW OF NORTH AMERICA, INC.

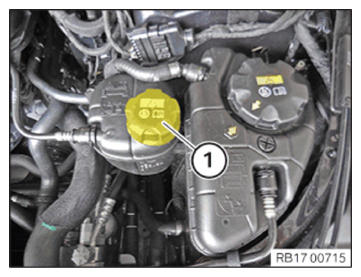

Shut seeing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
