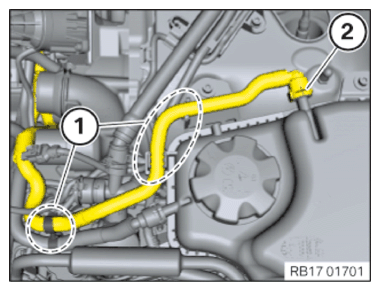

Installing the coolant ventilation line of the cylinder heads
- Thread in the coolant ventilation line and position.

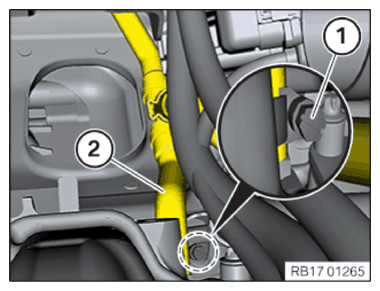

- Connect and lock the coolant ventilation line on the clutch (2).
- The retaining clip must engage audibly.
- Fasten the coolant ventilation line in the holders in the area (1).

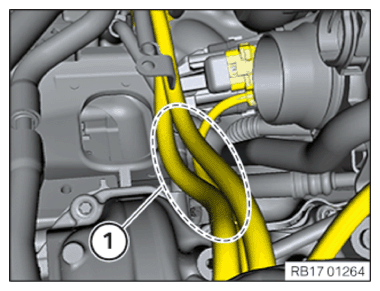

- Push aside the wiring harness in area (1).

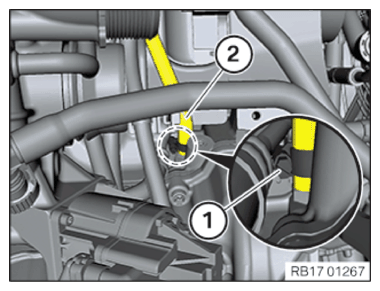

- Slide on the coolant ventilation line (2).
- Tighten the hose clamp (1).TIGHTENING TORQUES SPECIFICATION

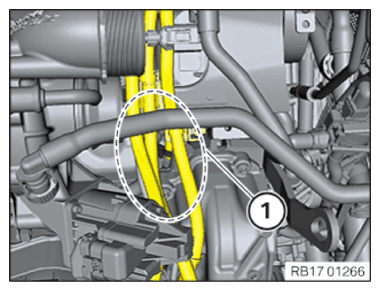

Coolant ventilation line Hose clamp Tightening torque 1.5 Nm - Push aside the wiring harness in area (1).
- Slide on the coolant ventilation line (2).
- Tighten the hose clamp (1).TIGHTENING TORQUES SPECIFICATION
Coolant ventilation line Hose clamp Tightening torque 1.5 Nm
Follow-up work
- Refer to INSTALL ALTERNATOR .
- Refer to CONNECTING THE COOLANT LINES OF THE EXHAUST TURBOCHARGER .
- Refer to ATTACHING THE CHARGE AIR COOLER .
- Refer to CONNECTING THE LEFT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
- Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
- Refer to INSTALL FRONT STIFFENING PLATE
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
- Refer to CLOSING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALL DRIVE BELT .
- Refer to PARTLY FASTENING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALL THE REAR TOP CROSS CONNECTION .
- Refer to INSTALL FRONT CROSS CONNECTION .
- Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING WITH THE RIGHT FRONT-END STRUT .
- Refer to INSTALLING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
- Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to FILL AND VENT THE HIGH-TEMPERATURE COOLANT CIRCUIT .
