Installing the right-hand charge air cooler

• Insert and position the right-hand charge air cooler (1).
• Position the charge air cooler (1) as shown.
• Connect and lock the coolant line (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (3).
  TIGHTENING TORQUES SPECIFICATION



  Charge air cooler to holder
  M6x35	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the coolant line (1) from the charge air cooler (2) to the right and clip it in.
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Alternator to cylinder head
  M8x85	Tightening torque	22 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check sealing ring (1) for damage, replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the bracket in the area (1) and lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install charge air line (2).
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Connecting hose to charge air cooler
  Hexagon screw M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lock clamp (2).
• Connect plug connection (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

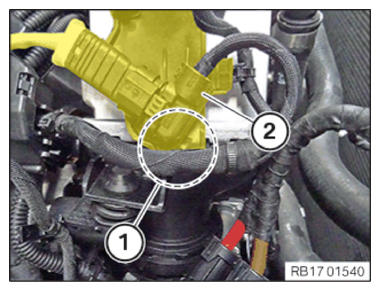

• Unlock the bracket at the lock (1).
• Feed out the tank vent valve with holder (2) and place it on one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT (CHARGE AIR COOLER) .
• Refer to SEALING OFF COOLANT FOR LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT LEFT BOTTOM WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALL THE REAR TOP CROSS CONNECTION .
• Refer to INSTALL FRONT CROSS CONNECTION .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING WITH THE RIGHT FRONT-END STRUT .
• Refer to INSTALLING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
• Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
