Installing right coolant pump for low temperature

Fastening electric coolant pump of return line to holder

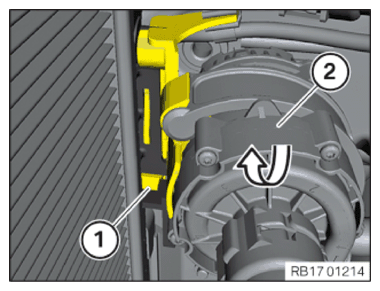

• Position electric coolant pump (2).
• Turn electric coolant pump (2) clockwise and engage at snap-in lug (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

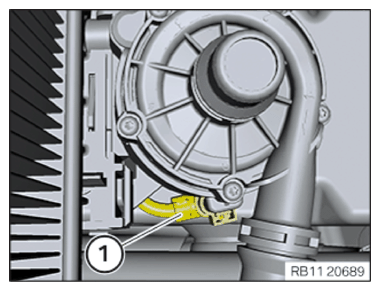

• Connect and lock the plug connection (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

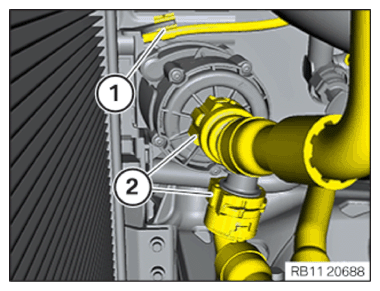

• Connect and lock the coolant hoses (2).
• Fix wiring harness mounting (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT LEFT BOTTOM WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALL THE REAR TOP CROSS CONNECTION .
• Refer to INSTALL FRONT CROSS CONNECTION .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING WITH THE RIGHT FRONT-END STRUT .
• Refer to INSTALLING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
• Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
• Refer to FILL THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
