Installing coolant pumps
- Feed in and install the coolant pump (2).
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION

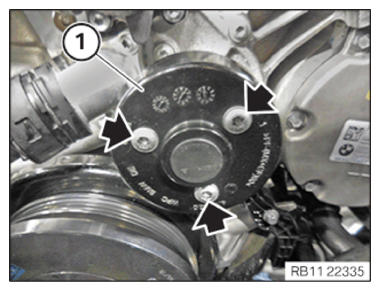

Coolant pump to component earner M6x20 Tightening torque 8 ± 1 Nm - Feed in and install the belt pulley (1).
- If the screws (arrows) are reused, clean the thread and coat with Loctite 243.
Adhesive
Screw lock Loctite Stick 243, medium strength 10 ml, Bottle 83192210339 - Hand-tighten the bolts (arrows).
Follow-up work
- Refer to INSTALLING THE FLANGE SUPPORTS ON THE COMPONENT CARRIER .
- Refer to INSTALLING COOLANT LINE BETWEEN THE COOLANT PUMP AND CYLINDER HEAD .
- Refer to INSTALLING THE DRIVE BELT FOR THE COOLANT PUMP .
- Refer to TIGHTENING BELT PULLEY
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
- Refer to CONNECTING NEGATIVE BATTERY CABLE .
- Refer to FILLING AND VENT THE COOLANT CIRCUIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALLING THE REAR THRUST FIELD .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
