Installing the relay valve for the high-temperature coolant circuit
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.

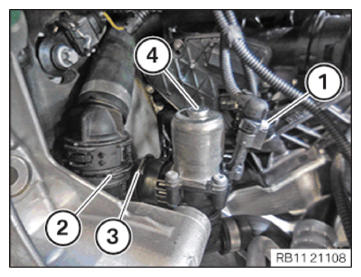

- Insert the relay valve (4) and position it.
- Connect and lock coolant line (3).
- Connect and lock coolant line (2).
- Make sure that the coolant line (2) and (3) engages audibly.
- Connect and lock the connector (1).
- Make sure the connector (1) engages audibly.
Follow-up Work
- Refer to INSTALLING THE ALTERNATOR .
- Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
- Refer to INSTALLING THE THROTTLE BODY .
- Refer to CONNECTING THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING RESONATOR .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLER DEVICE
- Refer to CONNECTING ALL BATTERY EARTH LEADS .
- Refer to BLEEDING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to CHECKING THE HIGH-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT STIFFENING PLATE .
- Refer to INSTALLING ACOUSTIC COVER .
