Installing the coolant thermostat

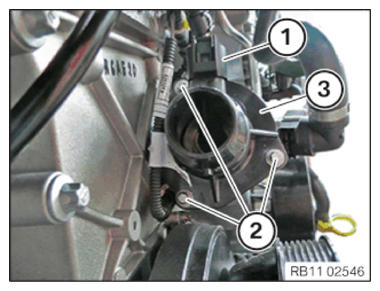

- Install the coolant thermostat (3).
- Tighten down screw (2).
- Connect plug connection (1) with new thermostat.
TIGHTENING TORQUES SPECIFICATION
| Coolant thermostat to coolant pump | ||
|---|---|---|
| M6 | tightening torque | 10 Nm |
Follow-up work
- Refer to INSTALLING THE RIGHT-HAND CHARGE AIR COOLER .
- Refer to CONNECTING THE COOLANT HOSE TO THE AUXILIARY COOLANT PUMP .
- Refer to CONNECTING THE COOLANT HOSE TO THE RADIATOR .
- Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to FILLING THE COOLING SYSTEM WITH THE VACUUM FILLING UNIT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
