Install heat management module
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.

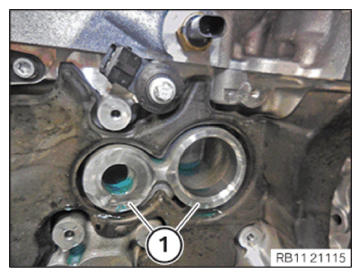

- Clean the sealing surfaces (1) on the crankcase with the special tool 0 495 102 (11 4 470) .
- Replace the sealing rings (1).
Parts : Sealing rings

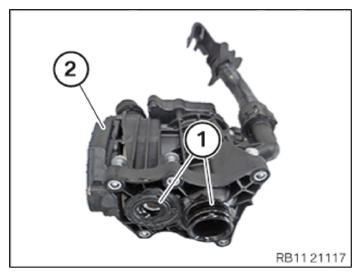

- Feed in the sealing rings (1) at the heat management module (2) and install.
- Correctly position the heat management module.
- Hand-tighten the bolts (1).

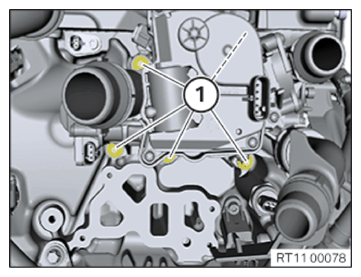

- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Heat exchange module to crankcase | ||
| M6 | Tightening torque | 9 Nm |

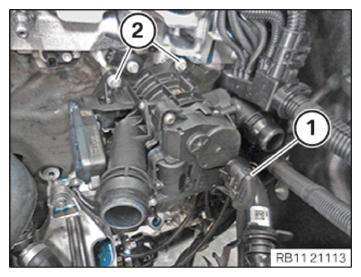

- Connect and lock the connector (1).
- Make sure the connector (1) engages audibly.

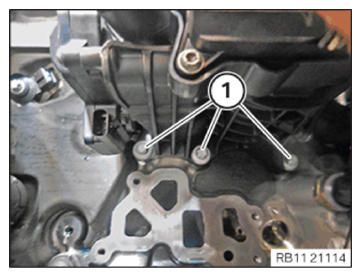

- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Heat exchange module to crankcase | ||
| M6 | Tightening torque | 9 Nm |
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

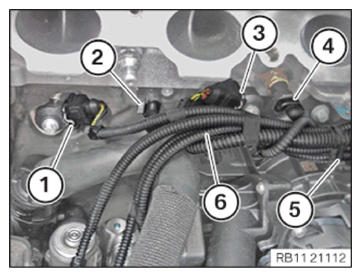

- Insert and position wiring harness section (6) for sensor system 1.
- Secure clamps (5).
- Connect connectors (1) to (4) and lock.
- Make sure the connectors (1) to (4) engage audibly.

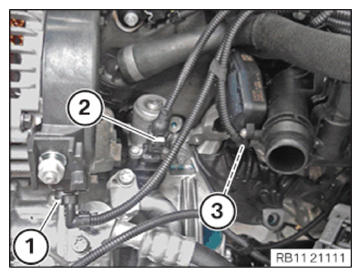

- Connect connectors (1) to (3) and lock.
- Make sure the connectors (1) to (3) engage audibly.
