Installing coolant feed line for exhaust turbocharger

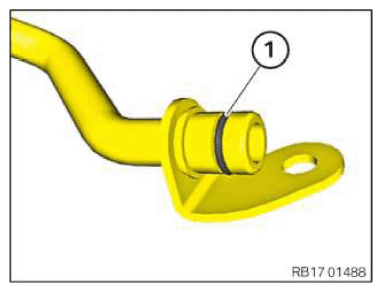

• Check the O-ring (1) for damage and replace if necessary.
• Coat the O-ring (1) with coolant.

  Consumable

  Technically suitable antifreeze and anti-corrosion agents

  Courtesy of BMW OF NORTH AMERICA, INC.

• Protect the air duct of the alternator (3) against contamination using a lint-free rag.
• Position the coolant feed line (2) at the Y-connector.
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Coolant line from exhaust turbocharger to bracket
  M6x30	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the coolant feed line in area (1) on the bracket.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the coolant line (1).

  The retailing clip must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING WITH THE RIGHT FRONT-END STRUT .
• Refer to INSTALLING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
• Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
