Installing the rear silencer

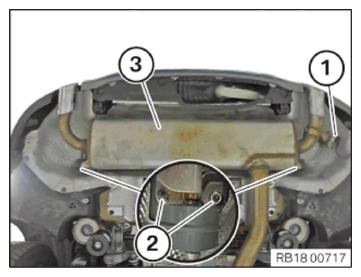

• Side the rear silencer (3) in with the assistance of a second person and install.
• Tighten nuts (2).

  Parts:  Nuts

  TIGHTENING TORQUES SPECIFICATION



  Rear silencer to body/bumper support
  M8 Replace nuts.	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

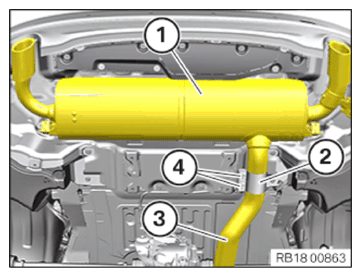

• Connect the rear silencer (1) with a clamp (2) to the front pipe (3).
• Center the gripper clamp (2) and tighten the nuts (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to IF INSTALLED: INSTALL THE TORSION STRUT ON THE RIGHT, AND ON THE LEFT WHERE REQUIRED .
