Remove the catalytic converter for cylinders 5 to 8

Preliminary work

Refer to REMOVE THE CONNECTING SUPPORT FROM THE TUNNEL .
Refer to REMOVE EXHAUST SYSTEM .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING INTAKE SILENCER HOUSING .
Refer to REMOVE THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT
Refer to REMOVE THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVE LEFT AND RIGHT WIPER ARM .
Refer to REMOVE THE COWL COVER .
Refer to REMOVING TRAILING LINK AT SPRING BOLT .
Refer to REMOVE THE SEAL FOR THE HOOD REAR .
Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
Refer to REMOVING THE LAMBDA OXYGEN SENSOR AND THE MONITORING OXYGEN SENSOR FOR CYLINDERS 1 TO 4 .
Refer to REMOVE THE LAMBDA OXYGEN SENSOR AND THE MONITORING OXYGEN SENSOR FOR CYLINDERS 5 TO 8 .
Refer to REMOVE ENGINE VENTILATION LINE .
Refer to REMOVE UPPER HEAT SHIELD
Refer to RELEASE SCREW BETWEEN THE LEFT AND RIGHT HEAT SHIELD .
Refer to REMOVE RIGHT HEAT SHIELD .
Refer to REMOVING THE LEFT HEAT SHIELD .
Refer to BENDING THE HEAT SHIELD TO THE REAR .
Refer to REMOVE VACUUM PUMP .

NOTE: TECHNICAL INFORMATION
In order to be able to remove the catalytic converter for cylinders 5 to 8, the catalytic converter for cylinders 1 to 4 also needs to be removed.

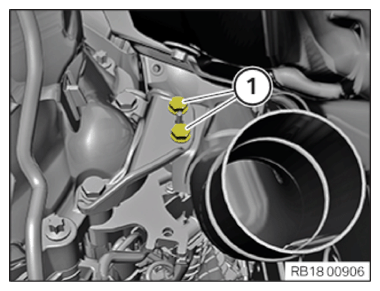

Release the nuts (1) at the bottom on the catalytic converter for cylinders 5 to 8.
Loosen catalytic converter from holder.

Courtesy of BMW OF NORTH AMERICA, INC.

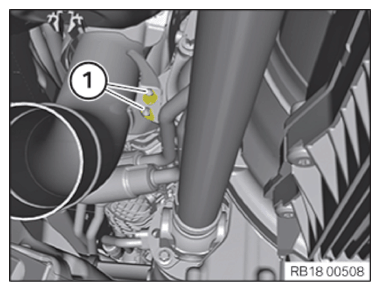

Release the screws (1) at the bottom on the catalytic converter for cylinders 1 to 4.
Loosen catalytic converter from holder.

Courtesy of BMW OF NORTH AMERICA, INC.

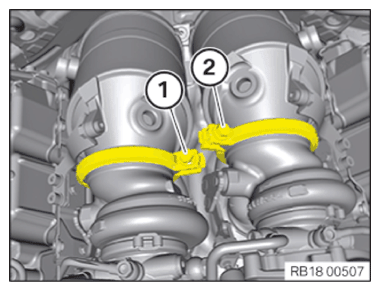

Loosen clamp (1) and remove.
Loosen clamp (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

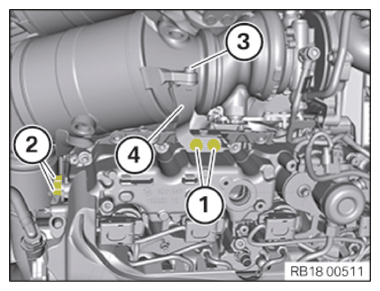

Loosen screws (1).
Loosen screws (2).
Loosen screw (3).
Remove holder (4).

Courtesy of BMW OF NORTH AMERICA, INC.

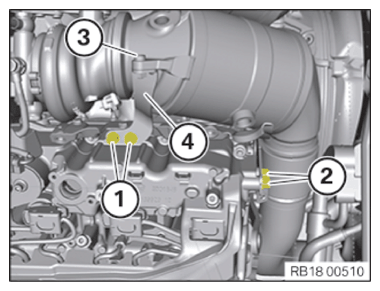

Loosen screws (1).
Loosen screws (2).
Loosen screw (3).
Remove holder (4).

Courtesy of BMW OF NORTH AMERICA, INC.

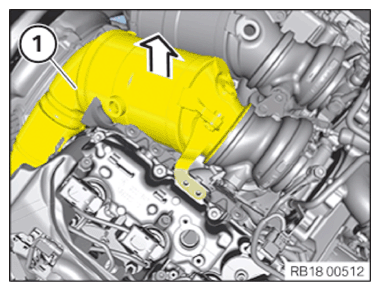

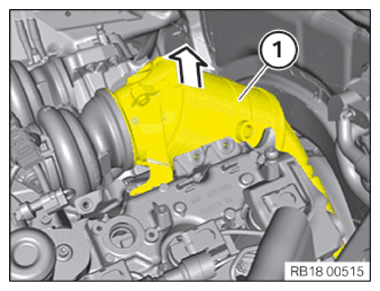

Lift catalytic converter for cylinders 1 to 4 (1) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

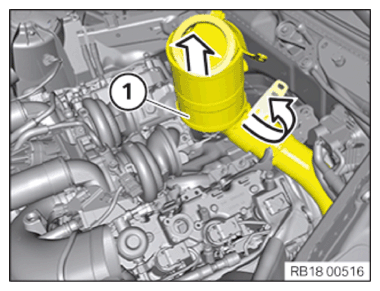

Unscrew catalytic converter for cylinders 1 to 4 (1) upwards in arrow direction and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Lift catalytic converter for cylinders 5 to 8 (1) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

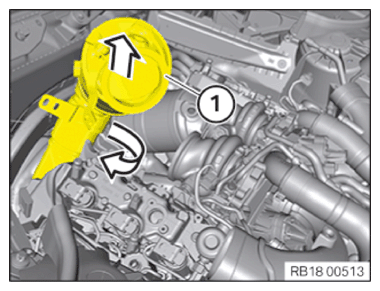

Unscrew catalytic converter for cylinders 5 to 8 (1) upwards in arrow direction and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
