Replace the right molded hose

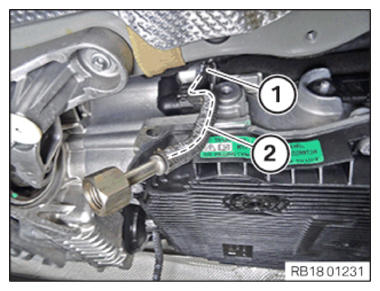

• Use a knife to cut open the preformed hose in the area (1).
• Replace the pressure pipe with union nut (2).

  Parts:  Pressure pipe, union nut

• Replace molded hose.

  Parts:  Molded hose

  Only low-surface-tension water is permitted for the installation.

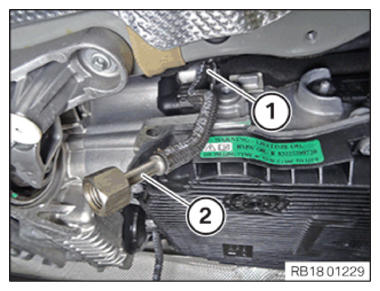

• Make sure that the molded hose (1) is routed in the area (2) as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL REAR UNDERBODY PROTECTION .
• Refer to RELEASING THE HEAT SHIELD .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALL TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALL TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALL THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALL HEAT SHIELD, TOP .
• Refer to PARTLY INSTALLING THE RIGHT LAMBDA OXYGEN SENSOR .
• Refer to PARTIALLY INSTALLING THE LEFT LAMBDA OXYGEN SENSOR .
• Refer to INSTALLING THE RETAINING BRIDGE IN VEHICLES WITH A GASOLINE PARTICULATE FILTER .
