Installing the two pressure lines at the top
- Version with S1DFA:

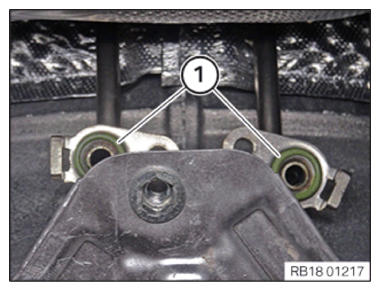

Replace sealing rings (1).
Parts: Sealing ring
Position sealing rings (1).
NOTE: For a better overview the removed condition is shown here. - Version with S1DFA:
Position sealing rings (3).

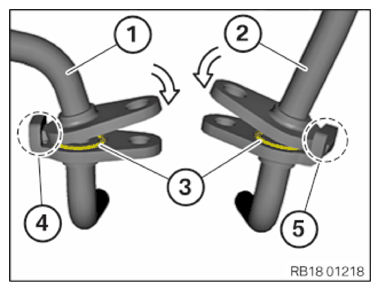

Position the pressure line at the top of cylinder bank 2 (2) in mounting eye (5) and tilt it in the arrow direction towards the center of vehicle.
Position the pressure line at the top of cylinder bank 1 (1) in mounting eye (4) and tilt it in the arrow direction towards the center of vehicle.
- Check the position of sealing rings (1) and, if necessary, correct it.
No sealing ring must have slipped.
- Version with S1DFA:
Tighten screws in areas (1).
TIGHTENING TORQUES SPECIFICATIONPressure line lug to the lateral side of the heat shield M6x16 screw Tightening torque 10 Nm
Follow-up work
- Refer to RELEASING THE HEAT SHIELD .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALL TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALL LEFT AND RIGHT WIPER ARM .
- Refer to INSTALL THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALL HEAT SHIELD, TOP <.
- Refer to PARTLY INSTALLING THE RIGHT LAMBDA OXYGEN SENSOR .
- Refer to PARTIALLY INSTALLING THE LEFT LAMBDA OXYGEN SENSOR .
- Refer to INSTALLING THE RETAINING BRIDGE IN VEHICLES WITH A GASOLINE PARTICULATE FILTER .
