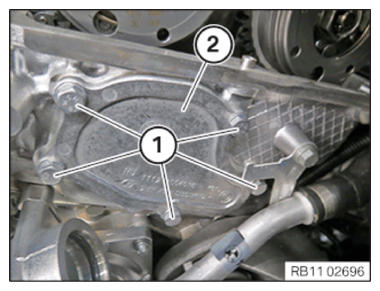

Install timing case cover at top left
- Position the timing case cover (2).
- Secure screws (1).
TIGHTENING TORQUES SPECIFICATION
| End cover (oil) to cylinder head | ||
|---|---|---|
| M6 x 20 | Tightening torque | 10 Nm |
Follow-up work
- Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
- Refer to SECURE OIL SUPPLY LINE ON EXHAUST TURBOCHARGER OF CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
- Refer to CONNECTING THE COOLANT HOSE TO THE AUXILIARY COOLANT PUMP .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING BOTH FRONT-END STRUTS
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to FILL THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to INSTALL ACOUSTIC COVER .
