Install the complete full-flow oil filter

Full-flow oil filter

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

Replace the gaskets (1), (2) and (3) on the full-flow oil filter.
Parts : Seals

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

Courtesy of BMW OF NORTH AMERICA, INC.

Clean the sealing residue off the sealing surface (1) on the crankcase using the special tool 0 495 102 (11 4 470) .
Have a cleaning cloth ready.

NOTE: RISK OF DAMAGE
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.

Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive, b) applies only if the timing chain is installed in the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Crank the engine with the special tool 0 493 380 (11 6 480) until the motor oil flows in the area of the oil duct (1).
Install full-flow oil filter (2) from the top and position it.
Hand-tighten the bolts (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Apply the screws (1) the full-flow oil filter (2) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.
Apply the screws (1) the full-flow oil filter (2) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.

Tighten the screw at the full-flow oil filter (A) in the order (1) to (5).

TIGHTENING TORQUES SPECIFICATION

Full-flow oil filter to crankcase
M6 Observe tightening sequence.	Joining torque	4 Nm
	Tightening torque	10 Nm

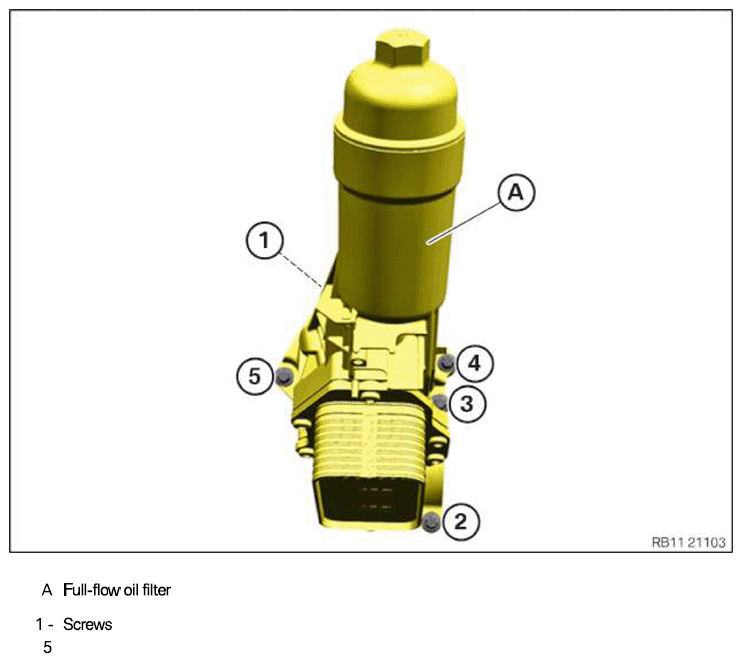

Fig 1: Full-Flow Oil Filter Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the coolant line (1) on the full-flow oil filter (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the manifold bracket (2).
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Manifold bracket to crankcase
M6x16	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure clamps (1).
Connect and lock coolant line (2).
Make sure that the cooling line (2) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect and lock coolant line (1).
Connect and lock coolant line (2).
Make sure that you can hear coolant lines (1) and (2) engage.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install coolant line (1).
Make sure that the cooling line (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!

Route the positive battery cable without abrasions and do not trap.

Insert and install the positive battery cable (2).
Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Positive battery cable to the alternator
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

Refer to TIGHTENING THE OIL FILTER CAP .
Refer to TOPPING UP THE ENGINE OIL .
Refer to INSTALLING THE INTAKE PLENUM .
Refer to INSTALLING THE TANK VENT VALVE .
Refer to CONNECTING THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
Refer to INSTALLING CONTROL UNIT HOLDER .
Refer to INSTALLING THE INTEGRATED SUPPLY MODULE (PDM) .
Refer to INSTALLING THE DME CONTROL UNIT .
Refer to INSTALLING RESONATOR .
Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLER DEVICE .
Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLER DEVICE .
Refer to CONNECTING ALL BATTERY EARTH LEADS .
Refer to BLEEDING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to BLEEDING THE LOW-TEMPERATURE COOLING SYSTEM .
Refer to CHECKING THE HIGH-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
Refer to CHECKING LOW-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
Refer to CHECKING ENGINE OIL LEVEL .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT STIFFENING PLATE .
Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
Refer to INSTALLING ACOUSTIC COVER AT REAR .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE SEAL FOR THE BONNET .
Refer to TAKING BONNET OUT OF THE SERVICE POSITION .
