Install the oil feed line for the exhaust turbocharger

• Replace sealing rings (1) on oil feed line (2).

  Parts:  Seals

  Courtesy of BMW OF NORTH AMERICA, INC.

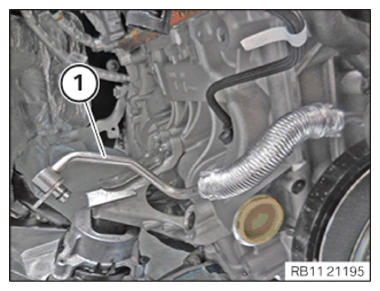

• Insert and install the oil supply line (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (1) on the oil feed line (2).
  TIGHTENING TORQUES SPECIFICATION



  Oil feed line to exhaust turbocharger/crankcase
  M6x12	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING EXHAUST TURBOCHARGER .
• Refer to INSTALLING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING THE COOLANT RETURN LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING COOLANT FEED LINE FOR EXHAUST TURBOCHARGER .
• Refer to INSTALLING CATALYTIC CONVERTER .
• Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
• Refer to IF INSTALLED: INSTALL THE TORSION STRUT ON THE RIGHT, AND ON THE LEFT WHERE REQUIRED .
• Refer to INSTALLING THE REAR AXLE COVER .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to INSTALLING LAMBDA OXYGEN SENSOR .
• Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
• Refer to INSTALLING CHARGE AIR LINE .
• Refer to INSTALLING CLEAN AIR PIPE .
• Refer to INSTALLING RESONATOR .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to CHECKING ENGINE OIL LEVEL .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE REAR THRUST FIELD .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
