Install counterbalance shafts (B48 technical update 0/1)

• Vehicle up to production year 07/16

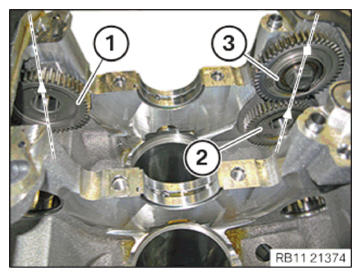

• Mount the gears (1) (2) and (3) so that the marks point vertically  up to the oil sump sealing surface (upwards).

  Mark on the gear (1) on the intake side: Triangle

  Mark on gear (2) on exhaust side: Two rectangles

  Mark on gear (3) on exhaust side: one rectangle

  Courtesy of BMW OF NORTH AMERICA, INC.

• Vehicle from production year 07/16
• Mount the gears (1) (2) and (3) so that the marks point vertically  up to the oil sump sealing surface (upwards).

  Mark on the gear (1) on the intake side: Triangle

  Mark on the gear (2) on the exhaust side: Triangle

  Mark on gear (3) on exhaust side: one rectangle

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the gear (1).

  Parts  : Gear

• Install the gear (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

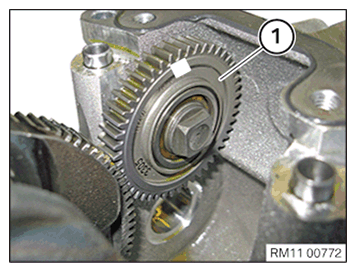

• Tighten the nut (1) hand-tight.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Make sure that the gears are not switched.

  The gear (1) is marked with an (A)  and must be installed on the exhaust side  .

• Replace the gear (1).

  Parts  : Gear

• Install the gear (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Make sure that the gears are not switched.

  The gear (1) is marked with an (E)  and must be installed on the intake side  .

• Replace the gear (1).

  Parts  : Gear

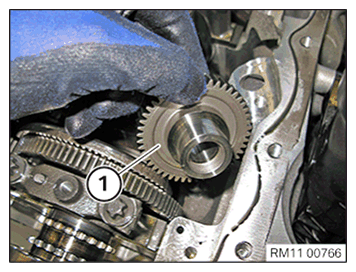

• Install the gear (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

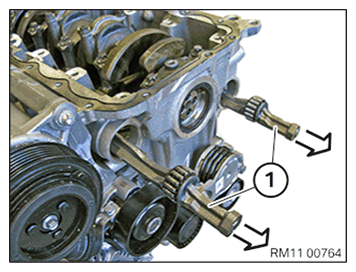

• Carefully install the counterbalance shafts (1) in the opposite direction of the arrow in the crankcase.

  Do not drop the counterbalance shafts (1) into the bearing positions.

  Courtesy of BMW OF NORTH AMERICA, INC.

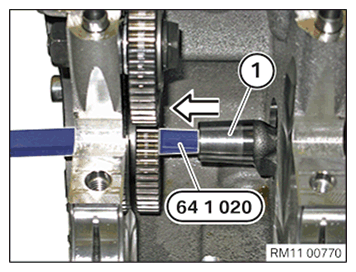

• Slide the special tool 0 493 681 (64 1 020)  or another suitable tool through the gear into the counterbalance shaft.
• Carefully insert the counterbalance shaft (1) into the gear on the intake side.

  Courtesy of BMW OF NORTH AMERICA, INC.

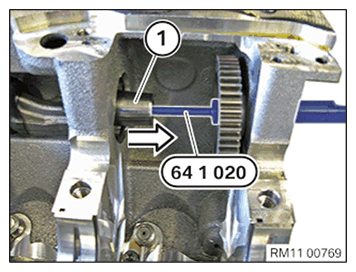

• Slide the special tool 0 493 681 (64 1 020)  or another suitable tool through the gear into the counterbalance shaft.
• Carefully insert the counterbalance shaft (1) into the gear on the exhaust side.

  Courtesy of BMW OF NORTH AMERICA, INC.

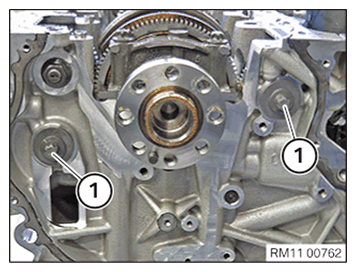

• Screw the bolts (1) into the counterbalance shafts on the left and right.
• Bolts must (1) not be tightened.

  The counterbalance shafts will be positioned in the next operation.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Rotate the crankshaft to the lower dead center of the first cylinder  .
• Mount the special tool 2 288 054  and abut the bolts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Make sure the special tool 2 288 054  is correctly fitted in the guides (1) of the counterbalance shaft (2).
• If necessary, turn the crankshaft slightly.
• Tighten special tool 2 288 054  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Unscrew the bolts (1) and remove the special tool 2 288 054  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Align the gear (1) in the direction of the arrow  until it rests against the gear (2).
• Tighten nut (3).

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the sealing cap (1).

  Parts  : Sealing cap

• Make sure the O-rings of the sealing cap (1) are fitted correctly.
• Mount both sealing caps (1).

Courtesy of BMW OF NORTH AMERICA, INC.
