Install drive belt

Only if the drive belt is torn :

Checking the injector shafts for coolant residues and cleaning if necessary

NOTE: TECHNICAL INFORMATION
If the drive belt breaks, the combustion engine can run hot. Therefore the injector shafts must be checked for coolant residues.
If the combustion engine has run hot, the coolant can overflow from the coolant expansion tank and get into the injector shafts.

NOTE: RISK OF DAMAGE
Injectors contaminated with coolant.
Damage to and failure of injectors that were coated with coolant for an extended period.

Covering injectors with suitable auxiliary materials before testing or topping up the coolant is mandatory.
Covering injectors with suitable auxiliary materials before working on the cooling system in the area of the injectors is mandatory.
If necessary, draw off all of the coolant from the coolant expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.

Always clean injectors or injector shafts contaminated with coolant (e.g. with compressed air).

CAUTION: Swirling dirt particles caused by compressed air.
Injury hazard!

Collect dirt particles, e.g. when blowing out, use cloth to do so.
Wear safety goggles.

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.
Check the injector shafts for coolant residues (1).
If there are coolant residues (1) in the injector shaft: Clean the injector shafts with an air gun (2).

For a better overview the removed condition is shown here.

Note the course of the belt (1).

Diagram S63T4

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For a better overview the removed condition is shown here.

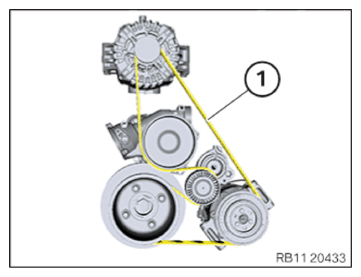

Note the course of the belt (1).

Diagram N63T3

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Put on the drive belt (1).
Maintain the preload of the belt tensioner (1) using a suitable socket wrench (3).
Remove the special tool 0 496 268 (11 0 390) (2) from the belt tensioner.

Courtesy of BMW OF NORTH AMERICA, INC.

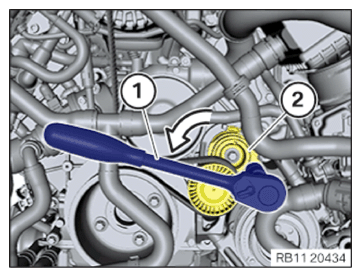

Loosen the belt tensioner (2) counterclockwise using a suitable socket wrench (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to PARTIALLY FASTENING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING FAN COWL .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING FRONT CROSS CONNECTION .
Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING WITH THE RIGHT FRONT-END STRUT .
Refer to INSTALLING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
