Attach the cylinder head 5 to 8 special tool
NOTE:
TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.
The work must be performed with vehicle care to prevent component damage.
- Fasten the special tool 0 493 997 (11 8 350) to the alternator screw connection.
TIGHTENING TORQUES SPECIFICATION
| Special tool to cylinder head | ||
|---|---|---|
| M8x25 | Tightening torque | 20 Nm |

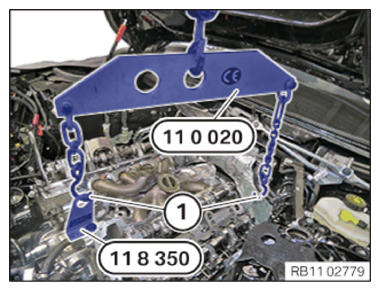

- Attach special tool 0 490 567 (11 0 020) on the lifting eye and special tool 0 493 997 (11 8 350) .
