Position the tensioning rail and slide rail on the cylinder head (cylinder 5 to 8)

NOTE: TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.

• Note that the tensioning rails and slide rails may break.

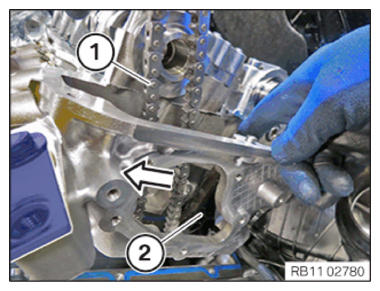

• Lift the timing chain (1) and press the slide rail (2) in the direction of the arrow.
