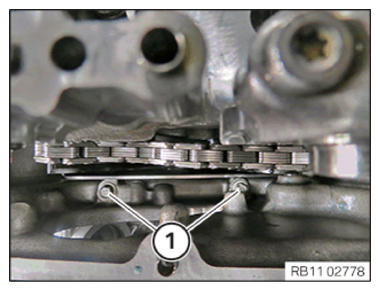

Secure the cylinder head bolts of the cylinders 5 to 8 at the timing case cover

• Tighten the screws (1) on the timing case cover.

TIGHTENING TORQUES SPECIFICATION

Cylinder head bolt to timing case cover
M8x30	Tightening torque	23 Nm
