Secure the coolant pipe to cylinder head 5-8
- Replace O-rings.
Parts
: O-rings
- Grease the O-rings.

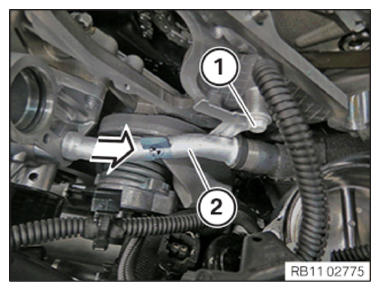

- Position the coolant pipe (2).
- Secure the screw (1) at the cylinder head.
TIGHTENING TORQUES SPECIFICATION
| Connecting branch for coolant pump (aluminum pipe) to cylinder head |
| M6x18 |
Tightening torque |
10 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
